Model

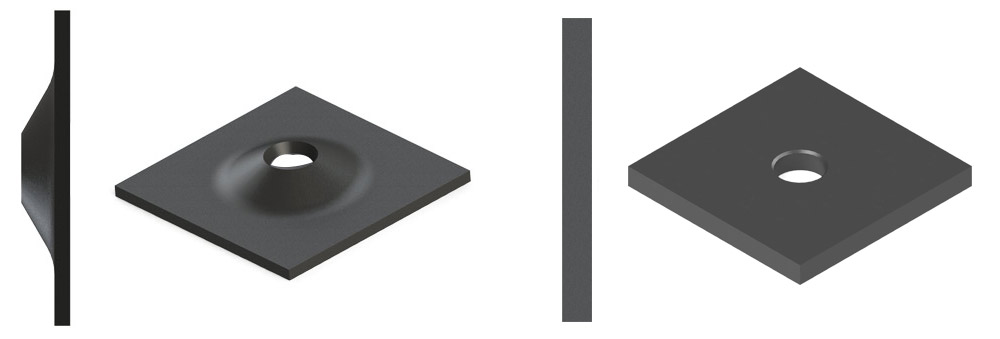

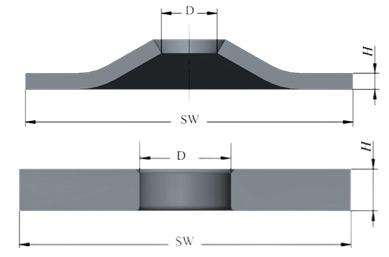

Hemispherical | Square

APL

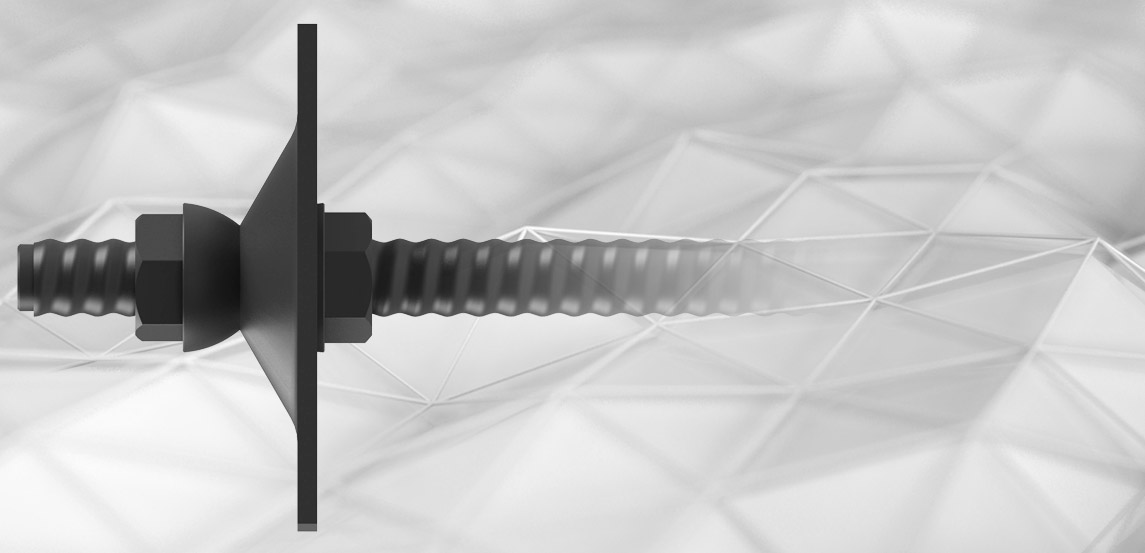

Anchor Plate - APL

Introduction

——

-Material: Carbon Steel

-Steel grade: CK45

Technical Data

——

Articel Number Spec Thread Diameter Model
mm
50-1002500800 PLR25/8 R25 150*150 8 27
50-1003200800 PLR32/8 R32 200*200 8 34
50-1003201000 PLR32/10 10
50-1003201200 PLR32/12 12
50-1003801000 PLR38/10 R38 200*200 10 40
50-1003801200 PLR38/12 12
50-1005102500 PLR51/25 R51 200*200 25 55
50-1005104000 PLR51/50 250*250 50
50-2003000800 PLT30/8 T30 200*200 8 32
50-2004001200 PLT40/12 T40 200*200 12 43
50-2005203500 PLT52/35 T52 220*220 35 55
50-2007604000 PLT76/40 T76 250*250 40 80


Remark:

Indications are only guidelines and depends on on-site ground conditions.
Only showed general specifications and irregular design is a available
Customized for individual customers
