Introduction
——-Material: Structural Alloy Steel
-Steel grade: 42CrMo

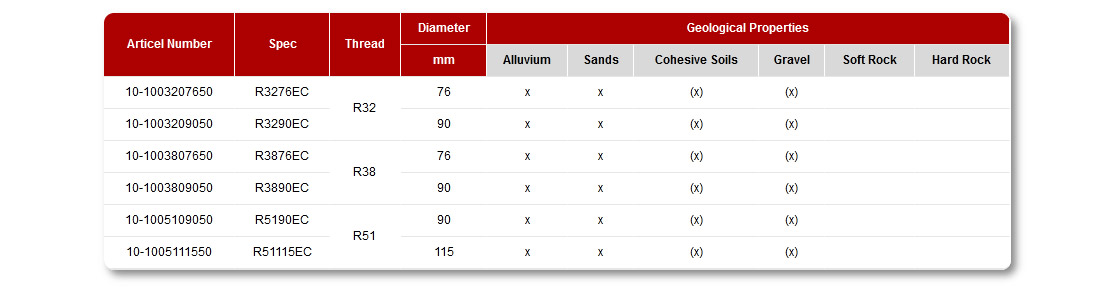

Technical Data
——
Articel Number | Spec | Thread | Diameter | Geological Properties | |||||
mm | Alluvium | Sands | Cohesive Soils | Gravel | Soft Rock | Hard Rock | |||
10-1003207650 | R3276EC | R32 | 76 | x | x | (x) | (x) |
|
|
10-1003209050 | R3290EC | 90 | x | x | (x) | (x) |
|
|
|
10-1003807650 | R3876EC | R38 | 76 | x | x | (x) | (x) |
|
|
10-1003809050 | R3890EC | 90 | x | x | (x) | (x) |
|
|
|
10-1005109050 | R5190EC | R51 | 90 | x | x | (x) | (x) |
|
|
10-1005111550 | R51115EC | 115 | x | x | (x) | (x) |
|
|
Remark:
Indications are only guidelines and depends on on-site ground conditions.
"x" marking show standard applications and "(x)“ markings possible combinations
Only showed general specifications and irregular design is a available
Customized for individual customers
