Model

Cross | Carbide Inserts

EXXU

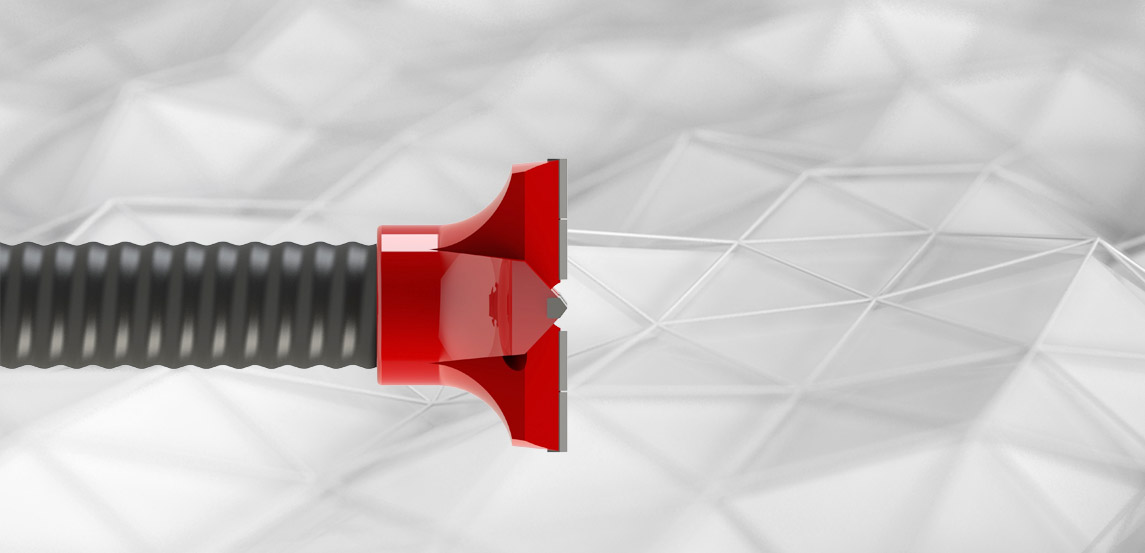

TC Drill Bit - EXXU

Introduction

——

-Material: Structural Alloy Steel and Carbide Inserts

-Steel grade: 42CrMo

-Carbide Grade: YG8 YG9 YG11

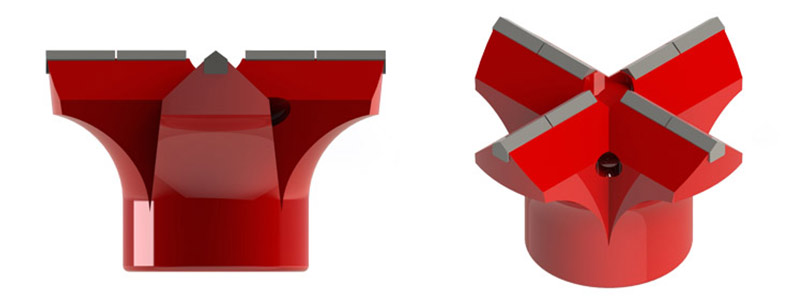

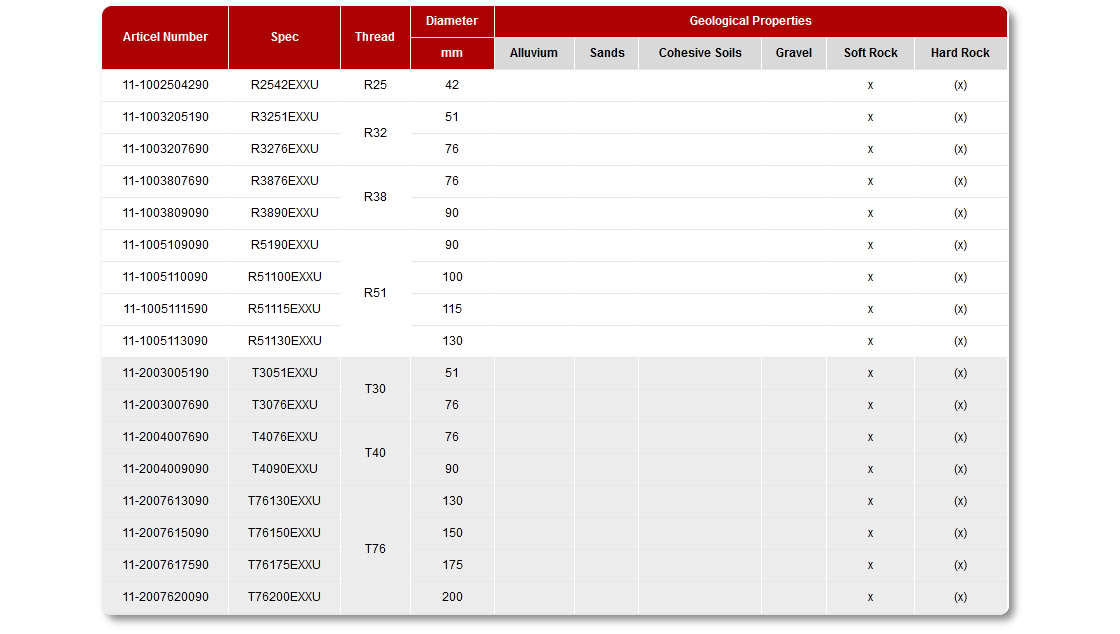

Technical Data

——

Articel Number Spec Thread Diameter Geological Properties
mm Alluvium Sands Cohesive Soils Gravel Soft Rock Hard Rock
11-1002504290 R2542EXX R25 42



x (x)
11-1003205190 R3251EXX R32 51



x (x)
11-1003207690 R3276EXX 76



x (x)
11-1003209090 R3290EXX 90



x (x)
11-1003807690 R3876EXX R38 76



x (x)
11-1003809090 R3890EXX 90



x (x)
11-1003810090 R38100EXX 100



x (x)
11-1005109090 R5190EXX R51 90



x (x)
11-1005110090 R51100EXX 100



x (x)
11-1005111590 R51115EXX 115



x (x)
11-1005113090 R51130EXX 130



x (x)
11-1005115090 R51150EXX 150



x (x)
11-1005113090 R51175EXX 175



x (x)
11-2003005190 T3051EXX T30 51



x (x)
11-2003007690 T3076EXX 76



x (x)
11-2004007690 T4076EXX T40 76



x (x)
11-2004009090 T4090EXX 90



x (x)
11-2004010090 T40100EXX 100



x (x)
11-2004011590 T40115EXX 115



x (x)
10-2005211590 T52115EXX T52 115



x (x)
10-2005213090 T52130EXX 130



x (x)
10-2005215090 T52150EXX 150



x (x)
10-2007313090 T73130EXX T73 130



x (x)
10-2007315090 T73150EXX 150



x (x)
10-2007317590 T73175EXX 175



x (x)
11-2007613090 T76130EXX T76 130



x (x)
11-2007615090 T76150EXX 150



x (x)
11-2007617590 T76175EXX 175



x (x)
11-2007620090 T76200EXX 200



x (x)
10-2010320090 T103200EXX T103 200



x (x)
10-2010325090 T103250EXX 250



x (x)


Remark:

Indications are only guidelines and depends on on-site ground conditions.
"x" marking show standard applications and "(x)“ markings possible combinations
Only showed general specifications and irregular design is a available
Customized for individual customers
