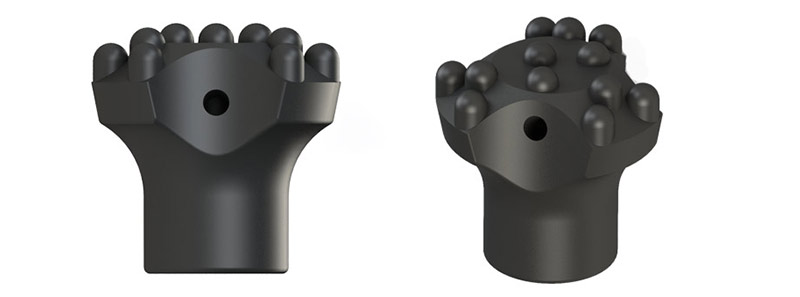

Introduction
——-Material: Structural Alloy Steel
-Steel grade: 42CrMo

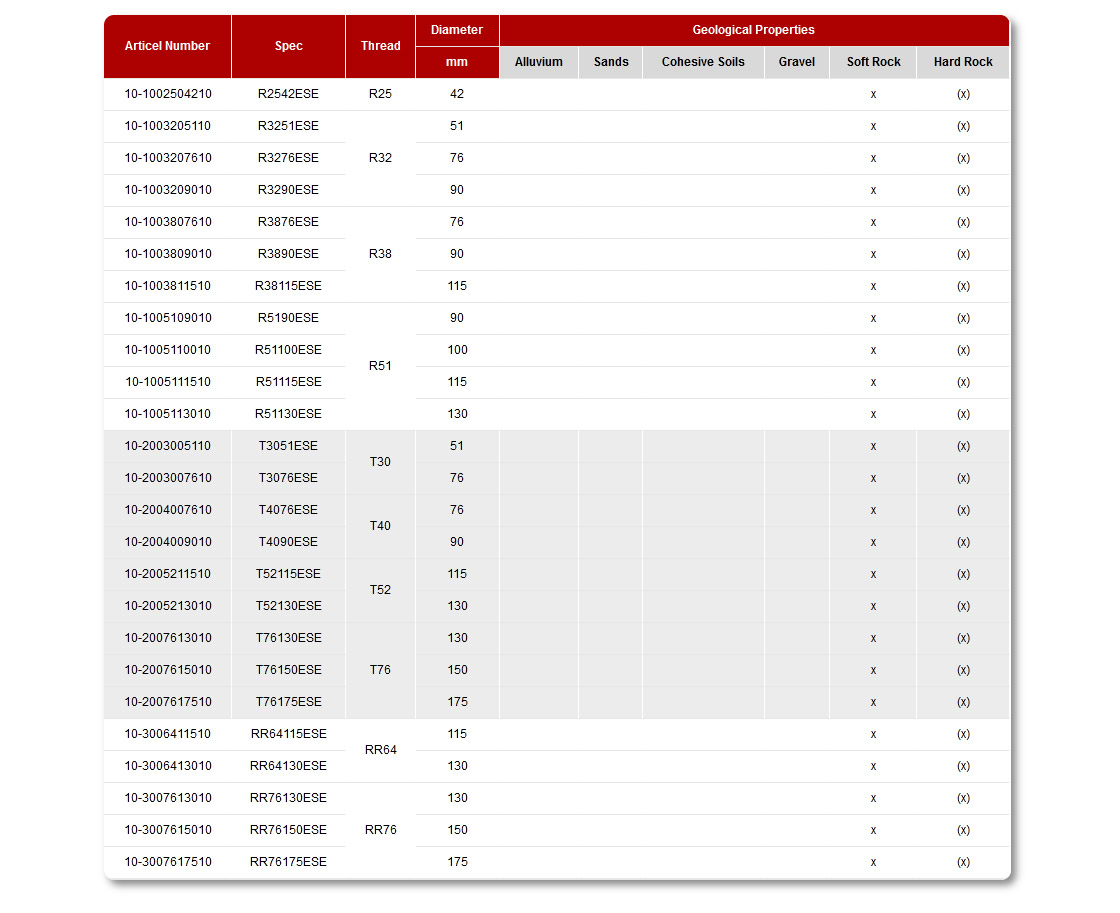

Technical Data
——
Articel Number | Spec | Thread | Diameter | Geological Properties | |||||
mm | Alluvium | Sands | Cohesive Soils | Gravel | Soft Rock | Hard Rock | |||
10-1002504210 | R2542ESE | R25 | 42 |
|
|
|
|
x | (x) |
10-1003205110 | R3251ESE | R32 | 51 |
|
|
|
|
x | (x) |
10-1003207610 | R3276ESE | 76 |
|
|
|
|
x | (x) | |
10-1003209010 | R3290ESE | 90 |
|
|
|
|
x | (x) | |
10-1003807610 | R3876ESE | R38 | 76 |
|
|
|
|
x | (x) |
10-1003809010 | R3890ESE | 90 |
|
|
|
|
x | (x) | |
10-1003811510 | R38115ESE | 115 |
|
|
|
|
x | (x) | |
10-1005109010 | R5190ESE | R51 | 90 |
|
|
|
|
x | (x) |
10-1005110010 | R51100ESE | 100 |
|
|
|
|
x | (x) | |
10-1005111510 | R51115ESE | 115 |
|
|
|
|
x | (x) | |
10-1005113010 | R51130ESE | 130 |
|
|
|
|
x | (x) | |
10-2003005110 | T3051ESE | T30 | 51 |
|
|
|
|
x | (x) |
10-2003007610 | T3076ESE | 76 |
|
|
|
|
x | (x) | |
10-2004007610 | T4076ESE | T40 | 76 |
|
|
|
|
x | (x) |
10-2004009010 | T4090ESE | 90 |
|
|
|
|
x | (x) | |
10-2005211510 | T52115ESE | T52 | 115 |
|
|
|
|
x | (x) |
10-2005213010 | T52130ESE | 130 |
|
|
|
|
x | (x) | |
10-2007613010 | T76130ESE | T76 | 130 |
|
|
|
|
x | (x) |
10-2007615010 | T76150ESE | 150 |
|
|
|
|
x | (x) | |
10-2007617510 | T76175ESE | 175 |
|
|
|
|
x | (x) | |
10-3006411510 | RR64115ESE | RR64 | 115 |
|
|
|
|
x | (x) |
10-3006413010 | RR64130ESE | 130 |
|
|
|
|
x | (x) | |
10-3007613010 | RR76130ESE | RR76 | 130 |
|
|
|
|
x | (x) |
10-3007615010 | RR76150ESE | 150 |
|
|
|
|
x | (x) | |
10-3007617510 | RR76175ESE | 175 |
|
|
|
|
x | (x) |
Remark:
Indications are only guidelines and depends on on-site ground conditions.
"x" marking show standard applications and "(x)“ markings possible combinations
Only showed general specifications and irregular design is a available
Customized for individual customers
