Model

Cross | Hardened

EXE

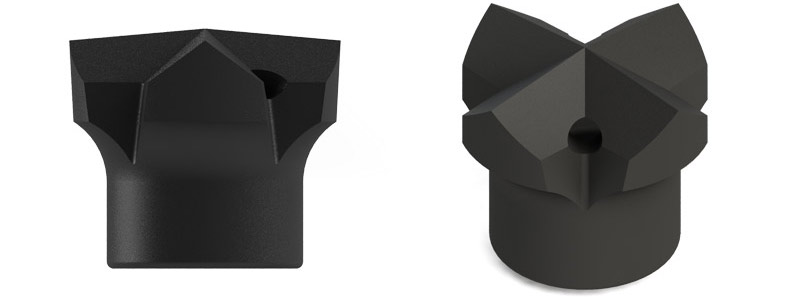

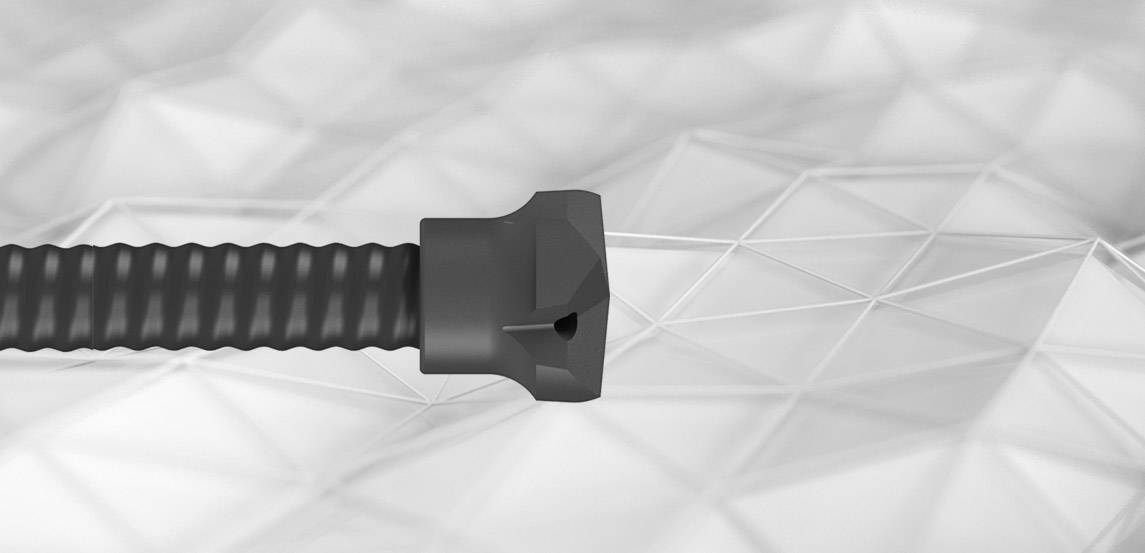

Steel Drill Bit - EXE

Introduction

——

-Material: Structural Alloy Steel

-Steel grade: 42CrMo

Technical Data

——

Articel Number Spec Thread Diameter Geological Properties
mm Alluvium Sands Cohesive Soils Gravel Soft Rock Hard Rock
10-1002504220 R2542EXE R25 42 x x (x) (x)

10-1003205120 R3251EXE R32 51 x x (x) (x)

10-1003207620 R3276EXE 76 x x (x) (x)

10-1003209020 R3290EXE 90 x x (x) (x)

10-1003807620 R3876EXE R38 76 x x (x) (x)

10-1003809020 R3890EXE 90 x x (x) (x)

10-1003811520 R38115EXE 115 x x (x) (x)

10-1005109020 R5190EXE R51 90 x x x (x)

10-1005110020 R51100EXE 100 x x x (x)

10-1005111520 R51115EXE 115 x x x (x)

10-1005113020 R51130EXE 130 x x x (x)

10-2003005120 T3051EXE T30 51 x x (x) (x)

10-2003007620 T3076EXE 76 x x (x) (x)

10-2004007620 T4076EXE T40 76 x x (x) (x)

10-2004009020 T4090EXE 90 x x (x) (x)

10-2005211520 T52115EXE T52 115 x x (x) (x)

10-2005213020 T52130EXE 130 x x (x) (x)

10-2005215020 T73150EXE T73 150 x x x x

10-2005217520 T73175EXE 175 x x x x

10-2007613020 T76130EXE T76 130 x x x x

10-2007615020 T76150EXE 150 x x x x

10-2007617520 T76175EXE 175 x x x x

10-2007620020 T76200EXE 200 x x x x

10-3006411520 RR64115EXE RR64 115 x x x x

10-3006413020 RR64130EXE 130 x x x x

10-3007613020 RR76130EXE RR76 130 x x x x

10-3007615020 RR76150EXE 150 x x x x

10-3007617520 RR76175EXE 175 x x x x

10-3007620020 RR76200EXE 200 x x x x

10-3010817520 RR108175EXE RR108 175 x x x x

10-3010820020 RR108200EXE 200 x x x x

Remark:

Indications are only guidelines and depends on on-site ground conditions.
"x" marking show standard applications and "(x)“ markings possible combinations
Only showed general specifications and irregular design is a available
Customized for individual customers
