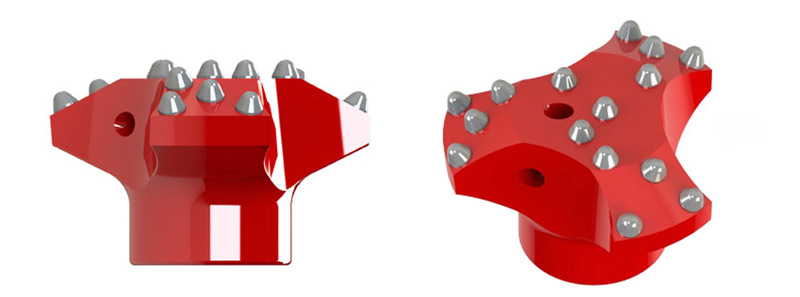

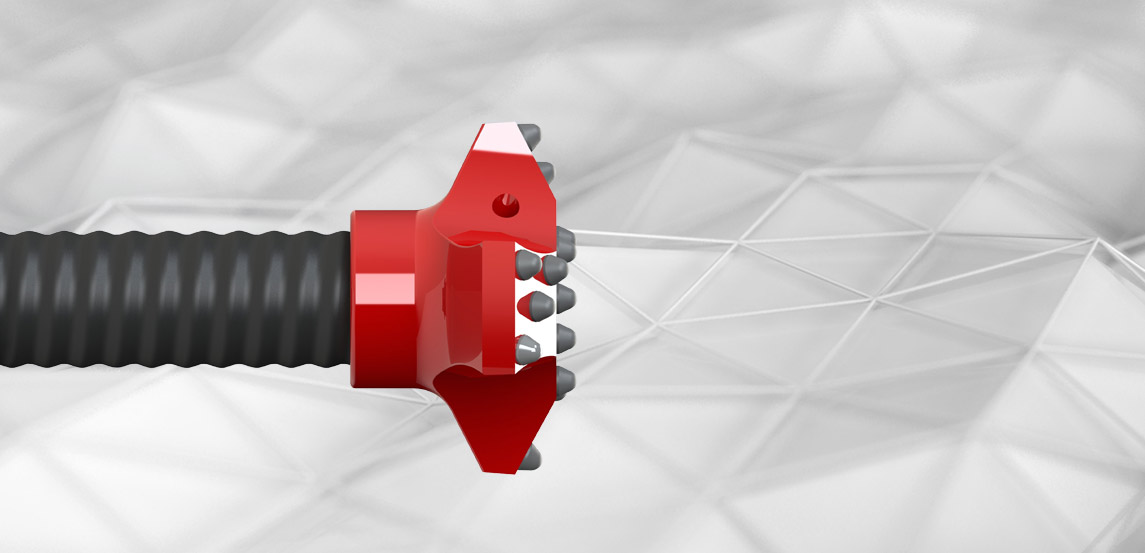

TC Drill Bit - ESSU

Introduction

——

-Material: Structural Alloy Steel and Carbide Inserts

-Steel grade: 42CrMo

-Carbide Grade: YG8 YG9 YG11

Technical Data

——

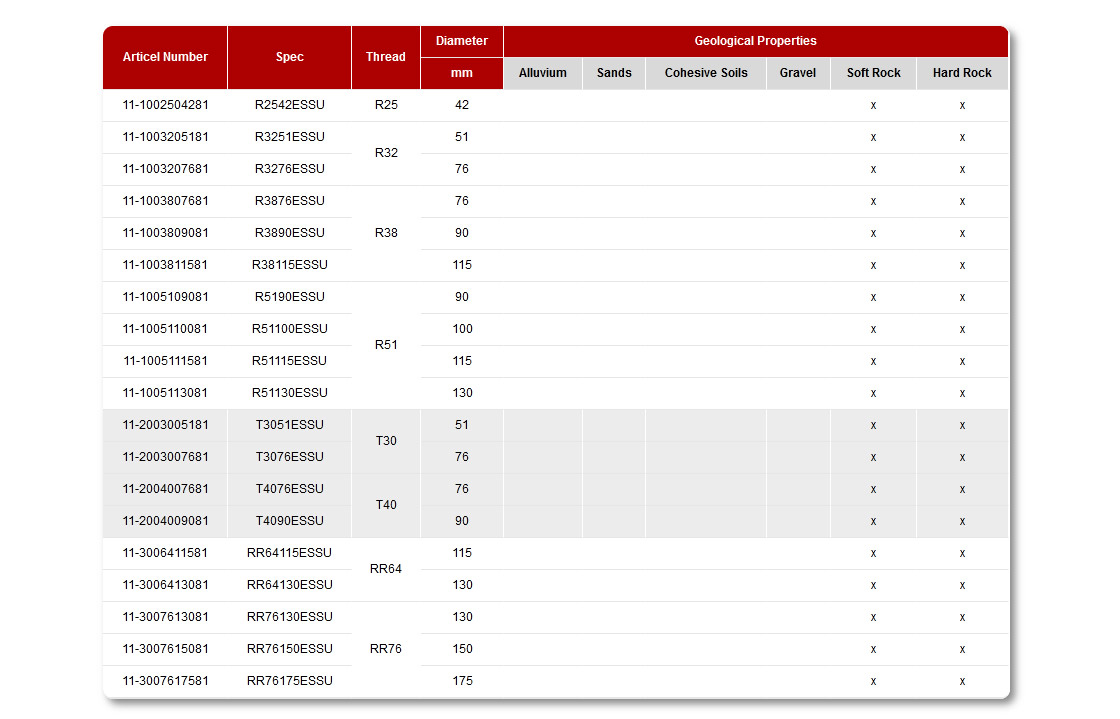

Articel Number Spec Thread Diameter Geological Properties
mm Alluvium Sands Cohesive Soils Gravel Soft Rock Hard Rock
11-1002504281 R2542ESS R25 42



x x
11-1003205181 R3251ESS R32 51



x x
11-1003207681 R3276ESS 76



x x
11-1003209081 R3290ESS 90



x x
11-1003807681 R3876ESS R38 76



x x
11-1003809081 R3890ESS 90



x x
11-1003811581 R38115ESS 115



x x
11-1005109081 R5190ESS R51 90



x x
11-1005110081 R51100ESS 100



x x
11-1005111581 R51115ESS 115



x x
11-1005113081 R51130ESS 130



x x
11-2003005181 T3051ESS T30 51



x x
11-2003007681 T3076ESS 76



x x
11-2003009081 T3090ESS
90



x x
11-2004007681 T4076ESS T40 76



x x
11-2004009081 T4090ESS 90



x x
11-2004010081 T40100ESS 100



x x
11-1005210081 T52100ESS T52 100



x x
11-1005211581 T52115ESS 115



x x
11-1005213081 T52130ESS 130



x x
11-1005215081 T52150ESS 150



x x
11-1005217581 T52175ESS 175



x x
10-2007313081 T73130ESS T73 130



x x
10-2007315081 T73150ESS 150



x x
10-2007317581 T73175ESS 175



x x
10-2007613081 T76130ESS T76 130



x x
10-2007615081 T76150ESS 150



x x
10-2007617581 T76175ESS 175



x x
10-2007620081 T76200ESS 200



x x
11-3006411581 RR64115ESS RR64 115



x x
11-3006413081 RR64130ESS 130



x x
11-3007613081 RR76130ESS RR76 130



x x
11-3007615081 RR76150ESS 150



x x
11-3007617581 RR76175ESS 175



x x
10-3010817581 RR108175ESS RR108 175



x (x)
10-3010820081 RR108200ESS 200



x (x)

Remark:

Indications are only guidelines and depends on on-site ground conditions.
"x" marking show standard applications and "(x)“ markings possible combinations
Only showed general specifications and irregular design is a available
Customized for individual customers
