Introduction
——-Material: Structural Alloy Steel
-Steel grade: 42CrMo

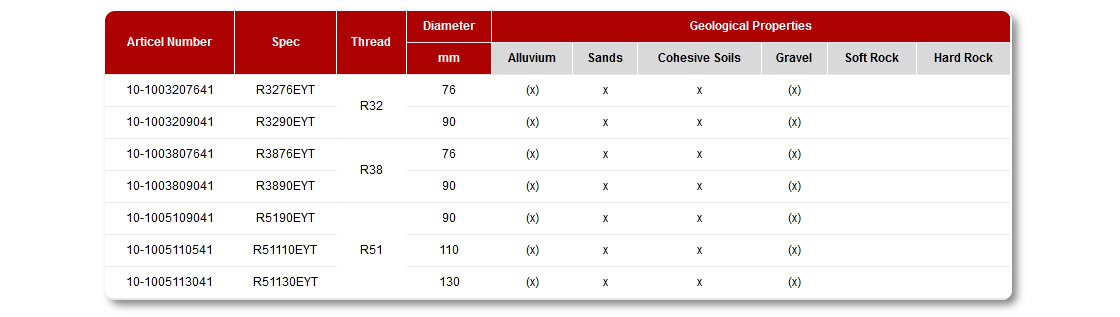

Technical Data
——
Articel Number | Spec | Thread | Diameter | Geological Properties | |||||
mm | Alluvium | Sands | Cohesive Soils | Gravel | Soft Rock | Hard Rock | |||
10-1003207641 | R3276EYT | R32 | 76 | (x) | x | x | (x) |
|
|
10-1003209041 | R3290EYT | 90 | (x) | x | x | (x) |
|
|
|
10-1003807641 | R3876EYT | R38 | 76 | (x) | x | x | (x) |
|
|
10-1003809041 | R3890EYT | 90 | (x) | x | x | (x) |
|
|
|
10-1005109041 | R5190EYT | R51 | 90 | (x) | x | x | (x) |
|
|
10-1005110541 | R51110EYT | 110 | (x) | x | x | (x) |
|
|
|
10-1005113041 | R51130EYT | 130 | (x) | x | x | (x) |
|
|
Remark:
Indications are only guidelines and depends on on-site ground conditions.
"x" marking show standard applications and "(x)“ markings possible combinations
Only showed general specifications and irregular design is a available
Customized for individual customers
