Introduction
——-Material: Structural Alloy Steel
-Steel grade: 42CrMo

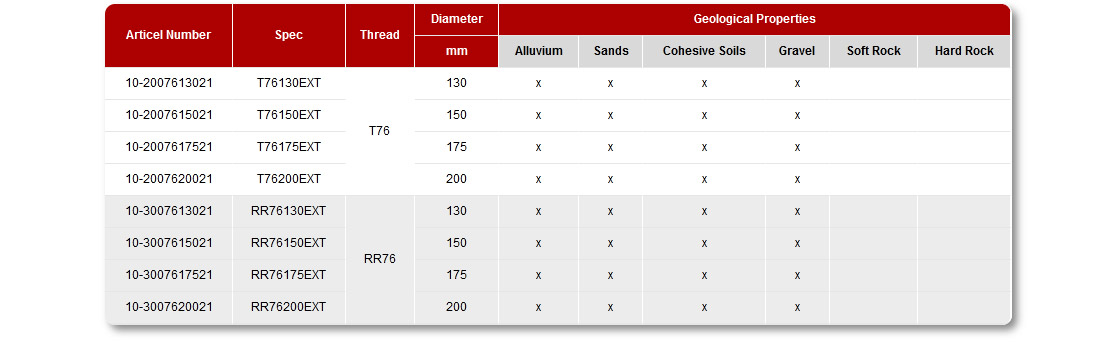

Technical Data
——
Articel Number | Spec | Thread | Diameter | Geological Properties | |||||
mm | Alluvium | Sands | Cohesive Soils | Gravel | Soft Rock | Hard Rock | |||
10-2007613021 | T76130EXT | T76 | 130 | x | x | x | x |
|
|
10-2007615021 | T76150EXT | 150 | x | x | x | x |
|
|
|
10-2007617521 | T76175EXT | 175 | x | x | x | x |
|
|
|
10-2007620021 | T76200EXT | 200 | x | x | x | x |
|
|
|
10-3007613021 | RR76130EXT | RR76 | 130 | x | x | x | x |
|
|
10-3007615021 | RR76150EXT | 150 | x | x | x | x |
|
|
|
10-3007617521 | RR76175EXT | 175 | x | x | x | x |
|
|
|
10-3007620021 | RR76200EXT | 200 | x | x | x | x |
|
|
Remark:
Indications are only guidelines and depends on on-site ground conditions.
"x" marking show standard applications and "(x)“ markings possible combinations
Only showed general specifications and irregular design is a available
Customized for individual customers
